Athena corner shower enclosure

Athena

A popular choice and versatile corner enclosure. Both inline panel and door width can be tailored to enhance your overall bathroom design bringing art and craft into tight spaces.

Choose from our range of glass, finishes and details below.

Your design choices

Long Square D
Long Square D
Long Square D
Short Square D
Short Square D
Square Fingerpull
Square Fingerpull
Short Round D
Short Round D
Short Contour
Short Contour
Long Round D Handle
Long round D handle
Long Contour Handle
Long contour handle
Towel Rail
Towel Rail
Clear
Clear
Clear
Bronze
Bronze
Satin Etched
Satin Etched
Opti Clear
Opti Clear
Grey
Grey
Polished Antique Gold
Polished Antique Gold
Polished Antique Gold
Satin Gold Optic
Satin Gold Optic
Satin Copper
Satin Copper
City Bronze
City Bronze
Satin Gun Metal
Satin Gun Metal
Satin Bronze
Satin Bronze
Satin Brass
Satin Brass
Polished Nickel
Polished Nickel
Polished Chrome
Polished Chrome
Country Bronze
Country Bronze
Brushed Nickel
Brushed Nickel
Brushed Chrome
Brushed Chrome
Brushed Antique Gold
Brushed Antique Gold

Select your specification

Adjustment

  • 18mm to return only

Design parameters

  • Minimum inline panel 200mm
  • Maximum inline panel 700mm, unless braced to wall or ceiling
  • Maximum door width 900mm
  • Maximum panel size 4m2
  • Maximum height 2400mm
  • Returns deeper than 1000mm will be supplied with a support bar

Features

  • Iconic Majestic landscape hinge with adjustable bias mechanism
  • Full breadth of glass and component finish options
  • No additional charge for overheight, angles or notches
  • Manufactured to the Standard Specification unless requested otherwise

Survey and Installation Service

Survey And Installation Service

Tier 3

Installation notes

Designed to be set back 10mm from the tray on each side. The door side has no adjustment. For successful installation the door side wall must be square.

1. Select unit size

2. Select handing

Athena Left Hand
Left hand
Athena Right Hand
Right hand

3. Select handle

* These handles are only available from stock in Polished Chrome

4. Select glass

5. Select finish

Crafted to order*

Only available with the Standard hinge. Lead times can be reduced by ordering your components at the start of the project.
* Not suitable for steam.

Standard Hinge
Short Round D
Clear Glass
Polished Chrome

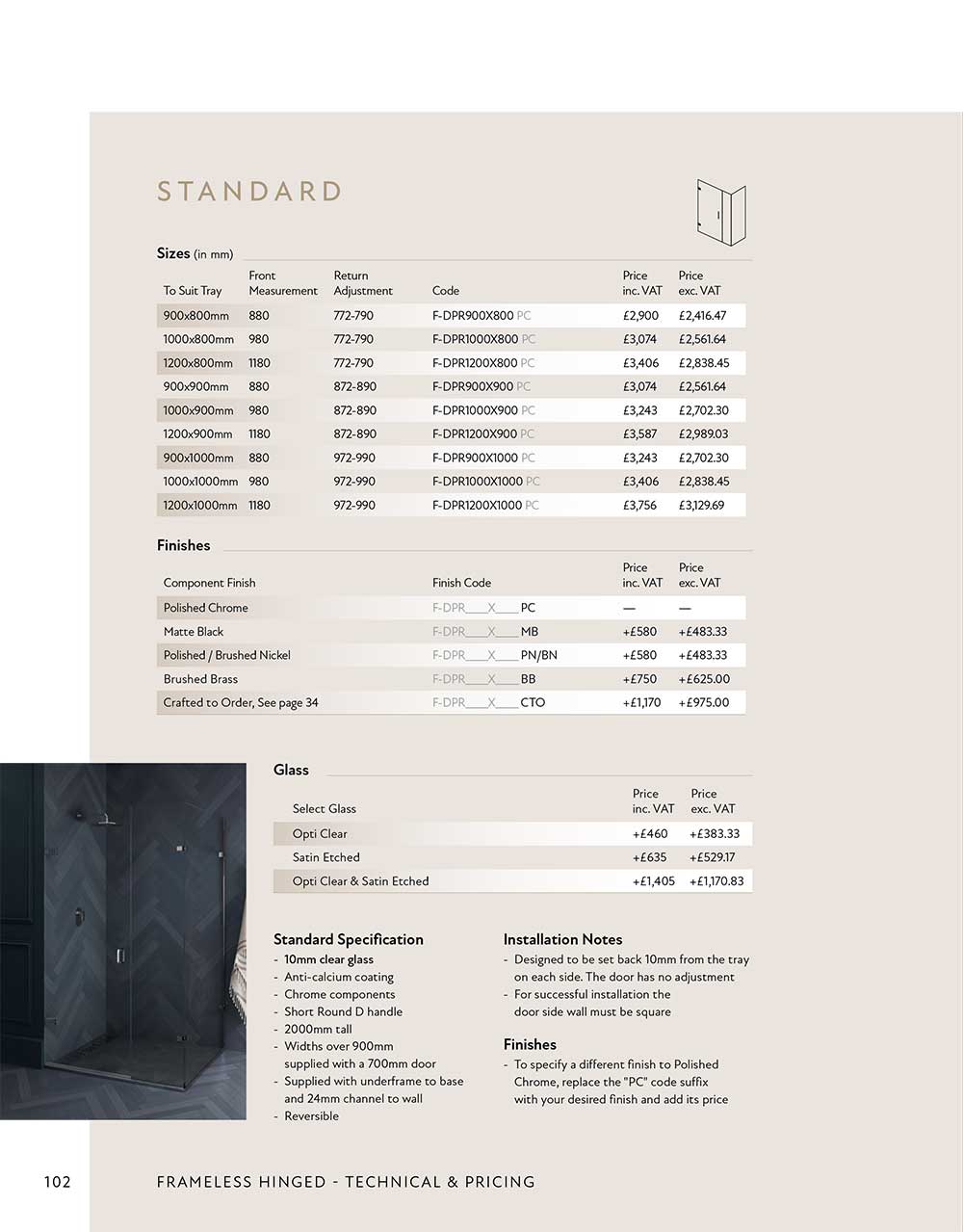

Standard specification

  • Lifetime guarantee
  • Outward opening
  • Anti-calcium coating
  • Chrome components
  • Short Round D handle
  • 10mm clear glass
  • 2000mm tall
  • Widths over 900mm supplied with a 700mm door
  • Supplied with a support bar from 1300mm
  • Supplied with an underframe to base and 24mm channel to wall

Standard features

  • Standard hinge
  • Continuous seal

Installation notes

Designed to be set back 10mm from the tray on each side. The door side has no adjustment. For successful installation the door side wall must be square.

Sizes available

When viewing on mobile, some data is compressed. For full product details, including adjustment, please see the Technical Details and Pricing in the Brochure.
