Barcelona
Create a space within a space with Barcelona. This three-sided enclosure features two in-line and two return panels, making it appear to blend almost invisibly with its environment.
Choose from our range of glass, finishes and details below.
Your design choices
Select your specification
Adjustment
- 18mm to each return

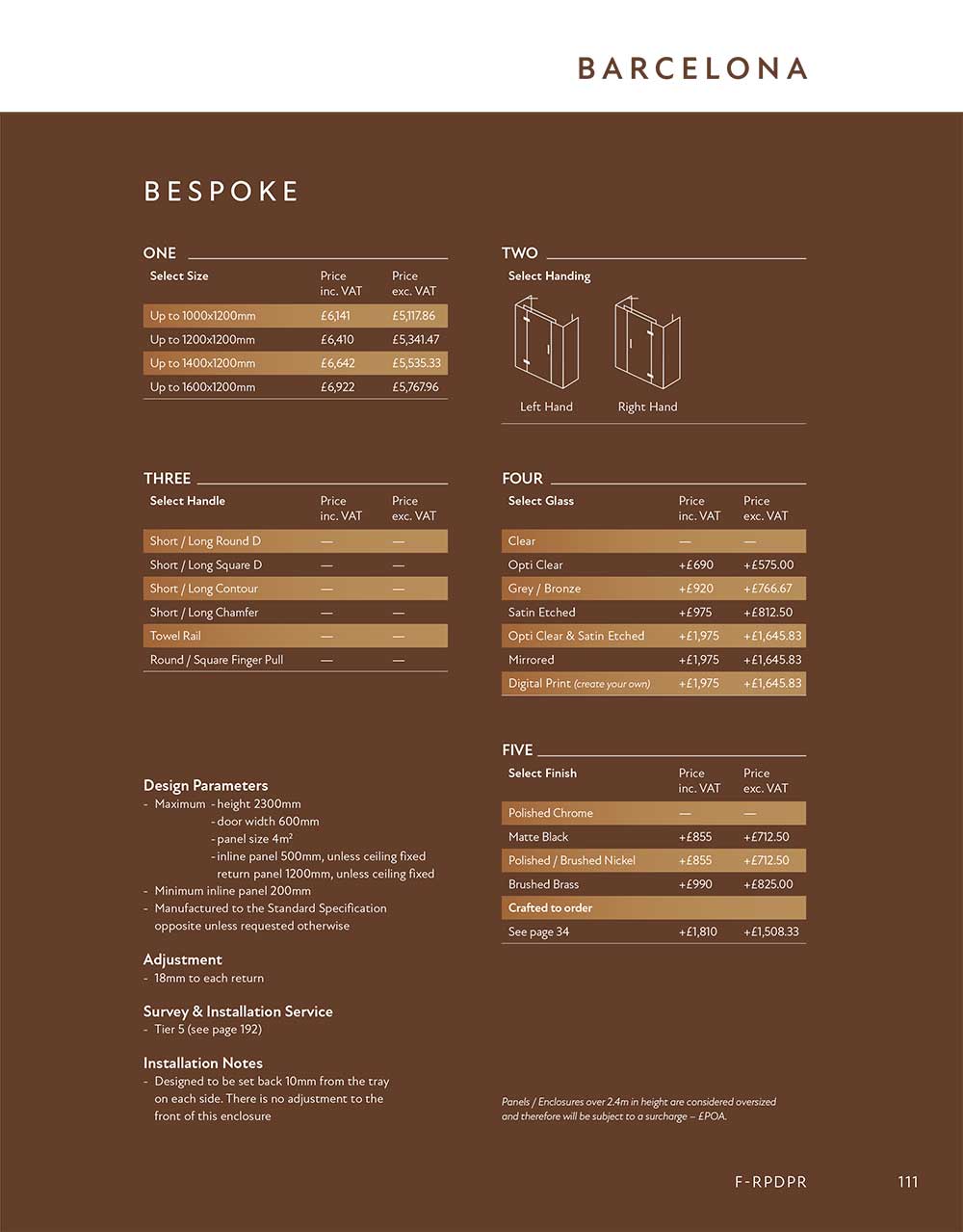

Design parameters
- Minimum inline panels 200mm
- Maximum inline panels 500mm, unless ceiling fixed
- Maximum return panel 1200mm, unless ceiling fixed
- Maximum door width 600mm
- Maximum panel size 4m2
- Maximum height 2300mm
Features
- Iconic Majestic landscape hinge with adjustable bias mechanism
- Full breadth of glass and component finish options
- No additional charge for overheight, angles or notches
- Manufactured to the Standard Specification unless requested otherwise
Survey and Installation Service
Installation notes
Designed to be set back 10mm from the tray on each side. There is no adjustment to the front of this enclosure.
1. Select unit size
2. Select handing
3. Select handle
* These handles are only available from stock in Polished Chrome
4. Select glass
5. Select finish
Crafted to order*
Only available with the Standard hinge. Lead times can be reduced by ordering your components at the start of the project.
* Not suitable for steam.

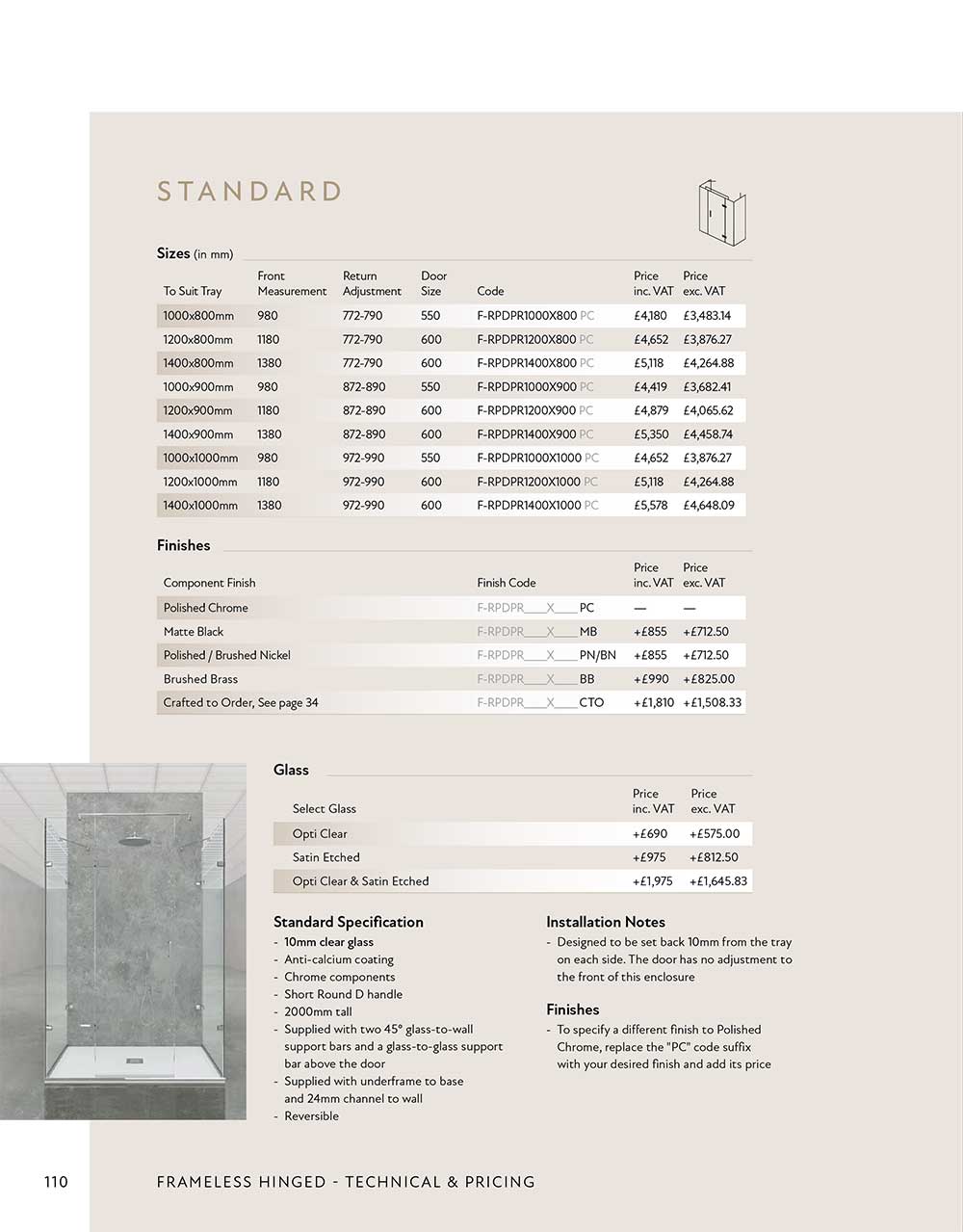

Standard specification
- Lifetime guarantee
- Outward opening
- Anti-calcium coating
- Chrome components
- Short Round D handle
- 10mm clear glass
- 2000mm tall
- Supplied with two 45° glass-to-wall support bars and a glass-to-glass support bar above the door
- Supplied with underframe to base and 24mm channel to wall
Standard features
- Standard hinge
- Continuous seal
Installation notes
Designed to be set back 10mm from the tray on each side. There is no adjustment to the front of this enclosure.
Sizes available
When viewing on mobile, some data is compressed. For full product details, including adjustment, please see the Technical Details and Pricing in the Brochure.
